Specification

प्रेशर रेंज
500m3/hr

तापमान सीमा
सेल्सियस (oC)

सेंसर टाइप
SS316

उपयोग
500m3/hrIndustrial

मटेरियल
MS

साइज
15 mm to 450 MM

बिजली की आपूर्ति
Electric

प्रॉडक्ट टाइप
Digital Flow Meter

रंग
White

डिस्प्ले टाइप

रेंज
500m3/hr

Trade Information

Minimum Order Quantity
1 टुकड़ा

आपूर्ति की क्षमता
प्रति महीने

डिलीवरी का समय
दिन

About

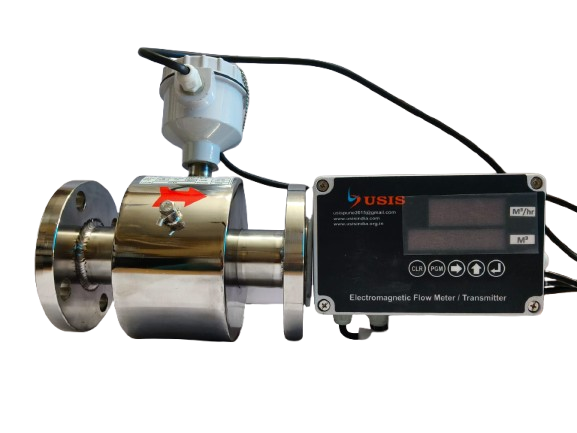

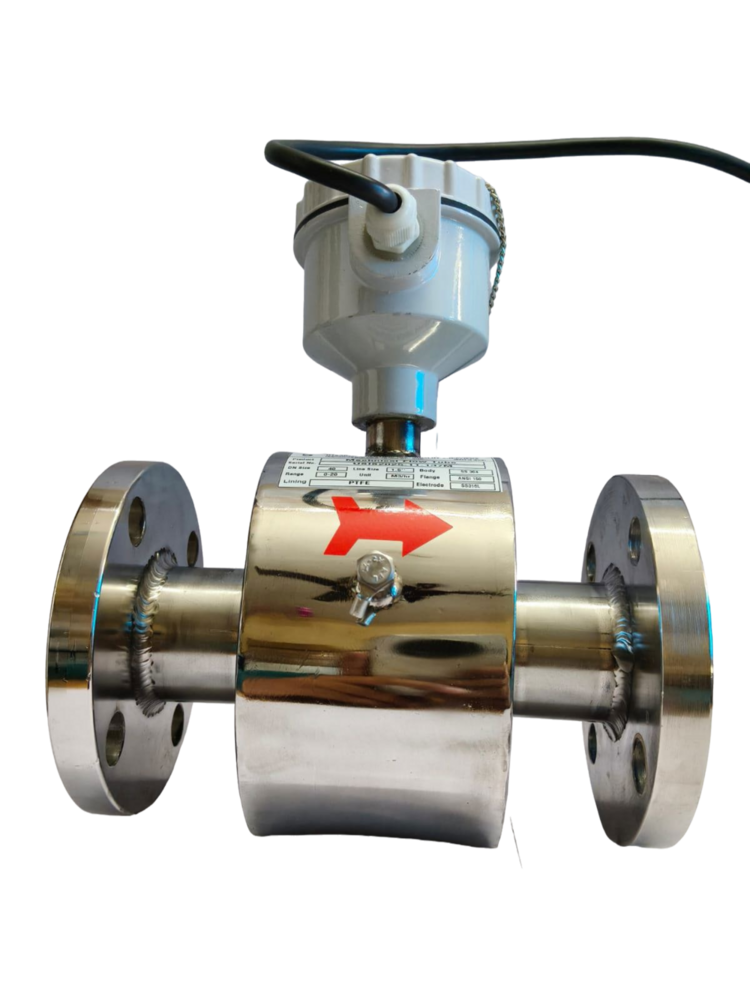

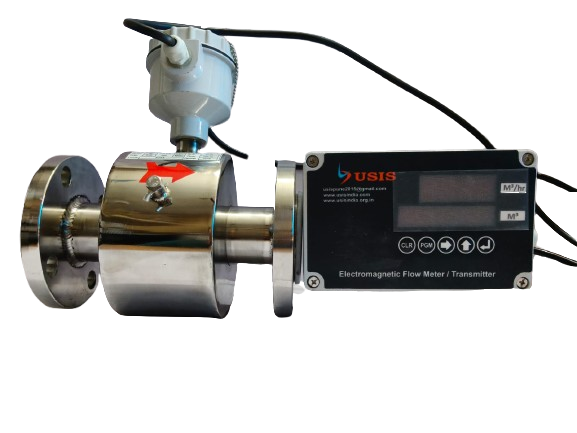

We are leading Manufacturer of Full Bore Electromagnetic Flow Meter in Pune and involved in supplying a broad range of Electromagnetic Flow Meter which is based on the principle of Faraday law of electromagnetic inductions. Made with higher precision these are used for measuring the voltage generated which is proportional to the flow velocity. With their efficiency, being Electromagnetic flow meter manufacturer and supplier in India. We offer these flow meters used in water & waste water, food & beverages and chemical & pharmaceutical industries. Technical Specifications of Electromagnetic Flow Meter Velocity Range 0. 2 to 10 m/s Flow Meter Sizes DN 2 to DN 2000 Coil Housing NBR /PTFE Hard Rubber/EPDM/PTFEHousing Carbon Steel/Stainless Steel Accuracy 0. 25% to 0. 50 % Protection Degree IP67/IP68 Power Supply 24 VDC or 230 VAC.

Application Media	Water
Usage/Application	ETP
Operating Temperature	-10 to 110 DegreeC Max
Accuracy	+-0.5% of actual flow rate
Display Type	Red LED displays
Brand	USIS
Flow Range	500m3/hr
Display	Digital
Operating Pressure	max up to 15 Kg/cm2
Electronics Enclosure	IP65
Displays Size	2 X4 digit Red LED displays
Power	230VAC ,1 Phase
Material	SS316L
Supply Voltage	230VAC ,1 Phase
Weight	Depend upon Size
Size	15 mm to 450 MM
Voltage	110 VAC,230 VAC,240 VDC
Frequency	50 Hz
Color	Ex-
Portable	Ex-
I Deal In	New Only
Protection Class for Sensor	IP65
Country of Origin	Made in India
